Lithologic Reservoirs ›› 2026, Vol. 38 ›› Issue (3): 141-148.doi: 10.12108/yxyqc.20260312

• PETROLEUM EXPLORATION • Previous Articles     Next Articles

Structural framework and hydrocarbon accumulation models of Zhongjiannan Basin in the western edge of the South China Sea

YANG Jinhai1(), YU Yixin2,3(), OUYANG Jie1, XU Maguang1, JIN Feng1, ZHANG Yuhang4, YU Lang2,3

  1. 1 Hainan Branch of CNOOC (China) Co.,Ltd., Haikou 570312, China
    2 State Key Laboratory of Petroleum Resources and Engineering, China University of Petroleum (Beijing), Beijing 102249, China
    3 College of Geosciences, China University of Petroleum, Beijing 102249, China
    4 School of Earth Sciences and Engineering, Xi’an Shiyou University, Xi’an 710065, China
  • Received:2025-09-26 Revised:2025-12-01 Online:2026-05-01 Published:2026-02-09

RichHTML

0

PDF (PC)

6

Abstract:

The low exploration level of Zhongjiannan Basin in the western edge of the South China Sea has constrained the progress of hydrocarbon exploration. By integrating 2D seismic data and exploration achivement from different periods in Zhongjiannan Basin, stratigraphic development characteristics and structural patterns of Miocene to Eocene were systematically analyzed, and geological conditions and hydrocarbon accumulation mo-dels were explored. The results show that： （1） Five major regional unconformities, such as the bottom boundary of Eocene, the bottom boundary of Miocene Sanya Foumation, Rizhao Formation bottom boundary, Chongyun Formation bottom boundary, and the bottom boundary of Pliocene Zhongjian Formation, are developed in Zhongjiannan Basin. Extensional and strike-slip faults are mainly distributed in the near SN, NE, and NW directions. And the near SN and NE-trending faults control the pattern of uplifts and depressions in the basin. Upon that, Zhongjiannan Basin can be divided into six first-order structural units of “three depressions, two uplifts, and one slope”. （2） There are three main sets of hydrocarbon source rocks developed in Zhongjiannan Basin, including middle Eocene lacustrine source rocks, Upper Eocene-Oligocene lacustrine and marine-terrestrial source rocks, and Lower-Middle Miocene marine source rocks. Hydrocarbon migrate laterally along structural ridges and large-scale unconformities, and transport vertically along major oil-source faults. Structures, strata, and lithology under the regional mudstone cover of Upper Neogene and Quaternary are favorable places for hydrocarbon enrichment and accumulation. The structural and stratigraphic traps of the western slope, northern uplift, and southern uplift, lithological trap groups of the northern and central depressions, as well as reef reservoirs developed in the high parts of local structures of the western slope and central uplift, all have certain exploration potential.

Key words: unconformity, fault system, structural units division, lateral migration, oil-source fault, reef, lithologic reservoir, Zhongjiannan Basin, western edge of the South China Sea

CLC Number:

  • TE122.1

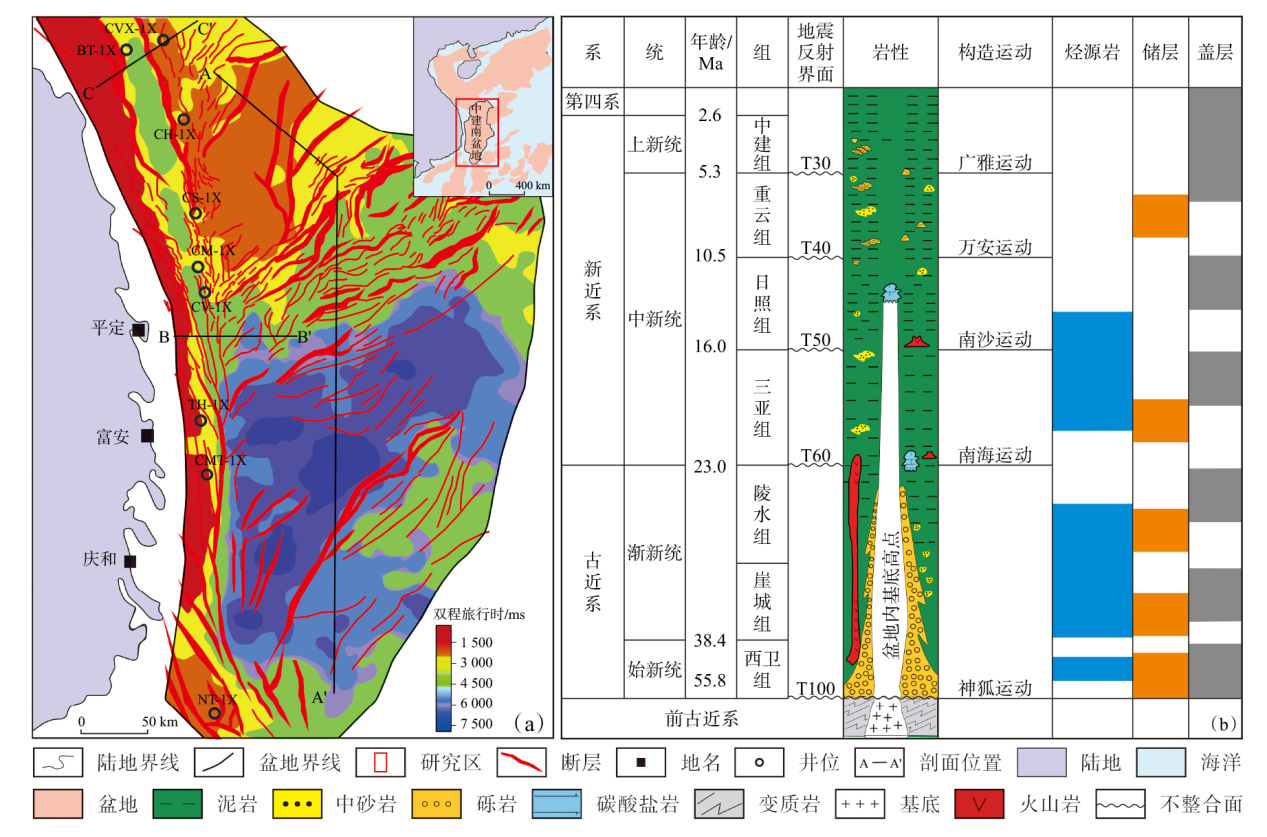

Fig. 1

Structural outlines （a） and comprehensive stratigraphic column of Cenozoic （b） of Zhongjiannan Basin in the South China Sea"

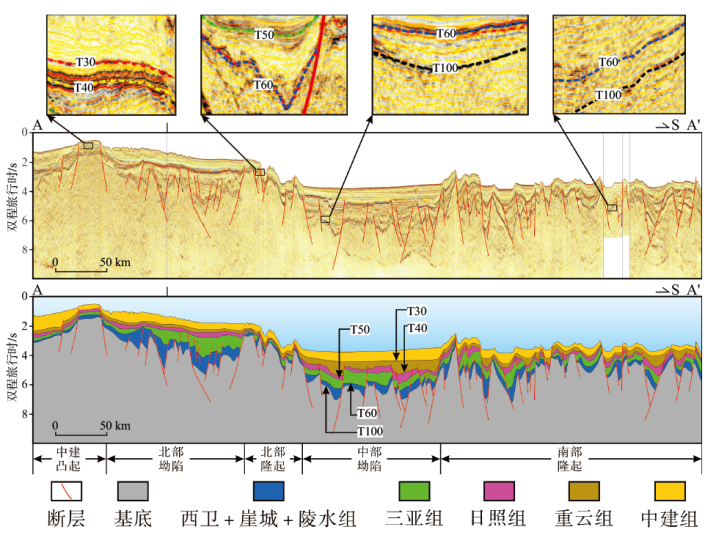

Fig. 2

Regional seismic and geological profiles of Zhongjiannan Basin"

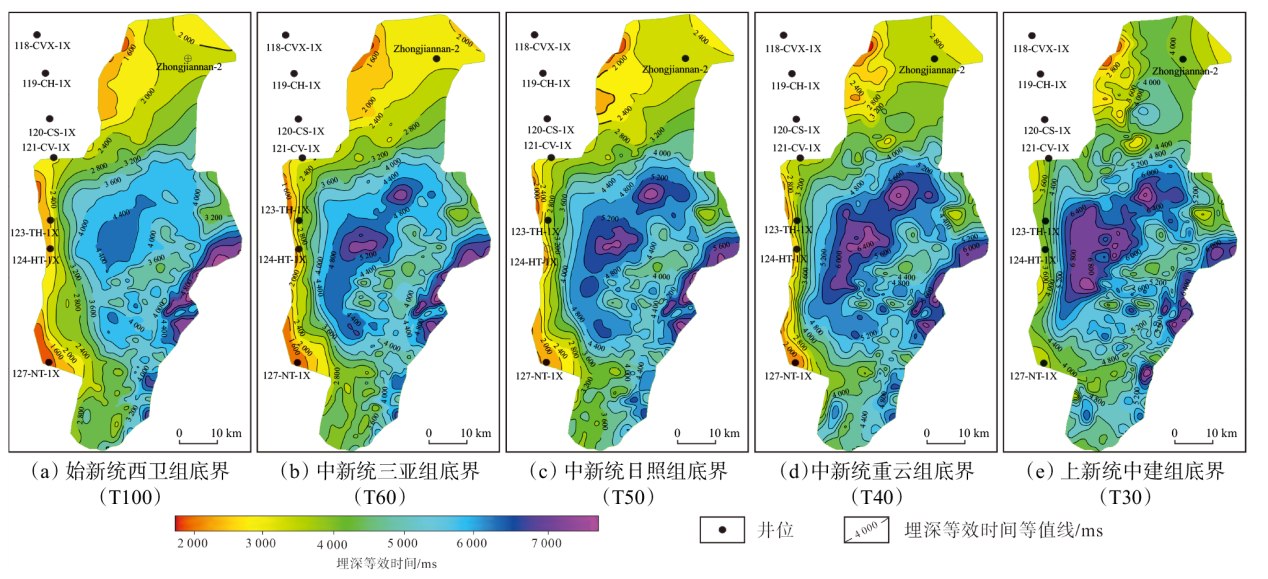

Fig. 3

Time domain burial depths of main stratigraphic interfaces of Zhongjiannan Basin"

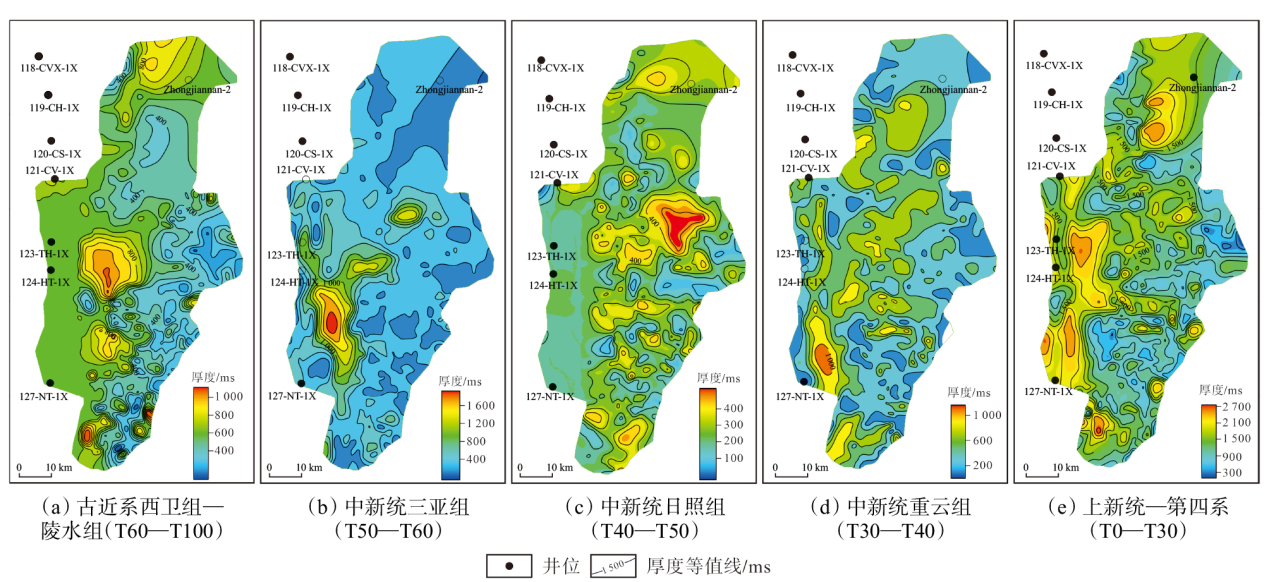

Fig. 4

Thickness maps of strata in different periods of Zhongjiannan Basin（time domain）"

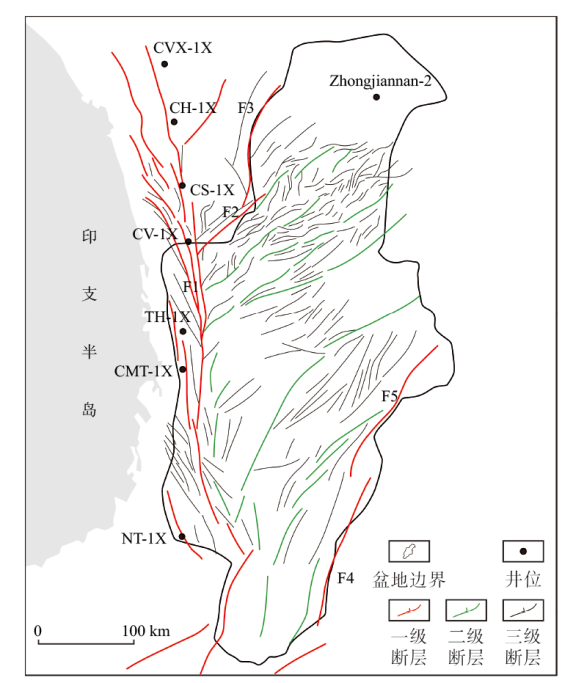

Fig. 5

Fault systems in Zhongjiannan Basin"

Fig. 6

Development characteristics of strike-slip faults in the western edge of Zhongjiannan Basin"

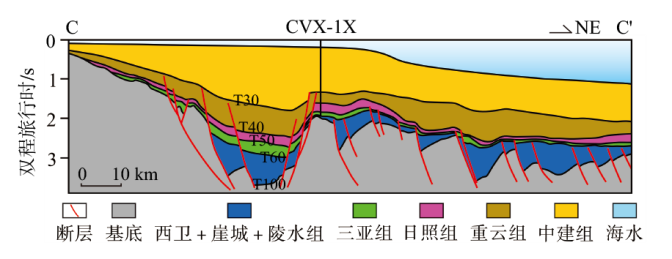

Fig. 7

Seismic profiles across well CVX-1X of Zhongjiannan Basin"

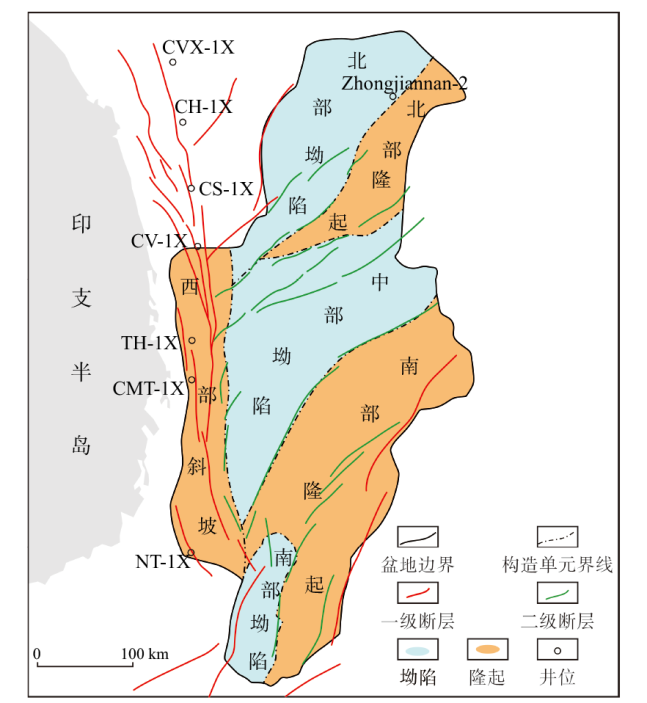

Fig. 8

Structural units division of Zhongjiannan Basin"

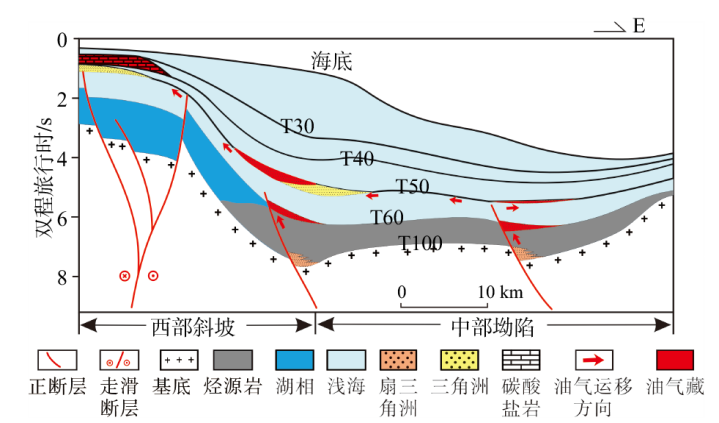

Fig. 9

Hydrocarbon accumulation models of Zhongjiannan Basin"

[1] 龚再升, 李思田, 谢泰俊, 等. 南海北部大陆边缘盆地分析与油气聚集[M]. 北京: 科学出版社, 1997.
GONG Zaisheng, LI Sitian, XIE Taijun, et al. Continental margin basin analysis and hydrocarbon accumulation of the northern South China Sea[M]. Beijing: Science Press, 1997.
[2] METCALFE I. Tectonic framework and Phanerozoic evolution of Sundaland[J]. Gondwana Research, 2011, 19(1):3-21.
[3] 李华, 何幼斌, 王英民, 等. 深水交互作用沉积研究进展:以南海北部珠江口盆地为例[J]. 岩性油气藏, 2015, 27(5):218-224.
LI Hua, HE Youbin, WANG Yingmin, et al. Research advances in deep water interaction deposition:A case from the Pearl River Mouth Basin,northern South China Sea[J]. Lithologic Reservoirs, 2015, 27(5):218-224.
[4] 刘为, 杨希冰, 张秀苹, 等. 莺歌海盆地东部黄流组重力流沉积特征及其控制因素[J]. 岩性油气藏, 2019, 31(2):75-82.
LIU Wei, YANG Xibing, ZHANG Xiuping, et al. Characteristics and controlling factors of gravity flow deposits of Huangliu Formation in eastern Yinggehai Basin[J]. Lithologic Reservoirs, 2019, 31(2):75-82.
[5] SHU K H, YI C Y, WEN B D, et al. New bathymetry and magnetic lineations identifications in the northernmost South China Sea and their tectonic implications[J]. Marine Geophysical Research, 2004, 25(1/2):29-44.
[6] 姚伯初, 万玲, 吴能友. 南海新生代构造演化及岩石圈三维结构特征[J]. 地质通报, 2005, 24(1):1-8.
YAO Bochu, WAN Ling, WU Nengyou. Cenozoic tectonic evolution and the 3D structure of the lithosphere of the South China Sea[J]. Geological Bulletin of China, 2005, 24(1):1-8.
[7] 鲁宝亮, 王万银, 张功成, 等. 红河断裂带海域延伸位置的地球物理证据及其与南海扩张的关系[J]. 热带海洋学报, 2015, 34(5):64-74.
LU Baoliang, WANG Wanyin, ZHANG Gongcheng, et al. Geophysical evidence of the Red River Fault extending position in the South China Sea and the relationship with seafloor sprea-ding[J]. Journal of Tropical Oceanography, 2015, 34(5):64-74.
[8] 韩光明, 周家雄, 裴健翔, 等. 莺歌海盆地底辟本质及其与天然气成藏关系[J]. 岩性油气藏, 2012, 24(5):27-31.
HAN Guangming, ZHOU Jiaxiong, PEI Jianxiang, et al. Essence of diapir and its relationship with natural gas accumulation in Yinggehai Basin[J]. Lithologic Reservoirs, 2012, 24(5):27-31.
[9] 吴克强, 裴健翔, 胡林, 等. 莺歌海盆地大—中型气田成藏模式及勘探方向[J]. 石油学报, 2023, 44(12):2200-2216.
WU Keqiang, PEI Jianxiang, HU Lin, et al. Accumulation model and exploration direction of medium-large gas fields in Yinggehai Basin[J]. Acta Petrolei Sinica, 2023, 44(12):2200-2216.
[10] 杨楷乐, 何胜林, 杨朝强, 等. 高温-超压-高CO2背景下致密砂岩储层成岩作用特征:以莺歌海盆地LD10区新近系梅山组—黄流组为例[J]. 岩性油气藏, 2023, 35(1):83-95.
YANG Kaile, HE Shenglin, YANG Zhaoqiang, et al. Diagenesis characteristics of tight sandstone reservoirs with high temperature,overpressure and high CO2 content:A case study of Neogene Meishan-Huangliu Formation in LD10 area,Yinggehai Basin[J]. Lithologic Reservoirs, 2023, 35(1):83-95.
[11] 李伟, 刘平, 艾能平, 等. 莺歌海盆地乐东地区中深层储层发育特征及成因机理[J]. 岩性油气藏, 2020, 32(1):19-26.
LI Wei, LIU Ping, AI Nengping, et al. Development characteristics and genetic mechanism of mid-deep reservoirs in Ledong area,Yinggehai Basin[J]. Lithologic Reservoirs, 2020, 32(1):19-26.
[12] FYHN M B W, NIELSEN L H, BOLDREEL L O, et al. Geological evolution,regional perspectives and hydrocarbon potential of the northwest Phu Khanh Basin,offshore Central Vietnam[J]. Marine and Petroleum Geology, 2009, 26(1):1-24.
[13] 张强, 吕福亮, 贺晓苏, 等. 南海近5年油气勘探进展与启示[J]. 中国石油勘探, 2018, 23(1):54-61.
ZHANG Qiang, LYU Fuliang, HE Xiaosu, et al. Progress and enlightenment of oil and gas exploration in the South China Sea in recent five years[J]. China Petroleum Exploration, 2018, 23(1):54-61.
[14] 钟广见, 高红芳. 中建南盆地新生代层序地层特征[J]. 大地构造与成矿学, 2005, 29(3):403-409.
ZHONG Guangjian, GAO Hongfang. Sequence characteristics of Cenozoic stratigraphy in Zhongjiannan Basin,South China Sea[J]. Geotectonica et Metallogenia, 2005, 29(3):403-409.
[15] 王伟平, 姚永坚, 蔡周荣, 等. 中建南盆地后扩张期T5和T3不整合面的发育特征及对南海科学钻探的意义[J]. 地质学报, 2022, 96(8):2822-2832.
WANG Weiping, YAO Yongjian, CAI Zhourong, et al. Characteristic of unconformity T5 and T3 in the Zhongjiannan Basin and their significance for scientific drilling in the South China Sea during the post-spreading period[J]. Acta Geologica Sinica, 2022, 96(8):2822-2832.
[16] 邱燕, 姚伯初, 李唐根, 等. 南海中建南盆地地质构造特征与油气远景[J]. 南海地质研究, 1997, 9:37-53.
QIU Yan, YAO Bochu, LI Tanggen, et al. Geological and tectonic features and hydrocarbon potential of the Zhongjiannan Basin,South China Sea[J]. Geological Research in South China Sea, 1997, 9:37-53.
[17] 陈玲. 南海中建南盆地构造样式分析[J]. 海洋地质与第四纪地质, 2006, 26(1):53-58.
CHEN Ling. Analysis of structural styles of Zhongjiannan Basin in the South China Sea[J]. Marine Geology & Quaternary Geo-logy, 2006, 26(1):53-58.
[18] 高红芳, 王衍棠, 郭丽华. 南海西部中建南盆地油气地质条件和勘探前景分析[J]. 中国地质, 2007, 34(4):592-598.
GAO Hongfang, WANG Yantang, GUO Lihua. Petroleum geological conditions and prospects in the Zhongjiannan Basin in the western South China Sea[J]. Geology in China, 2007, 34(4):592-598.
[19] 刘金萍, 简晓玲, 王后金, 等. 南海西部中建南盆地烃源岩热演化史[J]. 地质学刊, 2020, 44(1/2):157-162.
LIU Jinping, JIAN Xiaoling, WANG Houjin, et al. Thermal evolution history of hydrocarbon source rock in the Zhongjiannan Basin,western South China Sea[J]. Journal of Geology, 2020, 44(1/2):157-162.
[20] 余秋华, 张莉, 刘金萍, 等. 低勘探海域中建南盆地烃源岩早期预测[J]. 海洋地质前沿, 2024, 40(4):39-46.
YU Qiuhua, ZHANG Li, LIU Jinping, et al. Early prediction of source rocks in Zhongjiannan Basin in low exploration area[J]. Marine Geology Frontiers, 2024, 40(4):39-46.
[21] 高红芳, 陈玲. 南海西部中建南盆地构造格架及形成机制分析[J]. 石油与天然气地质, 2006, 27(4):512-516.
GAO Hongfang, CHEN Ling. An analysis of structural framework and formation mechanism of Zhongjiannan basin in the west of South China Sea[J]. Oil & Gas Geology, 2006, 27(4):512-516.
[22] NGUYEN H X, SAN N T, BAE W, et al. Formation mechanism and petroleum system of Tertiary sedimentary basins,offshore Vietnam[J]. Energy Sources,Part A:Recovery,Utilization,and Environmental Effects, 2014, 36(15):1634-1649.
[23] VU A T, FYHN M B W, XUAN C T, et al. Cenozoic tectonic and stratigraphic development of the Central Vietnamese continental margin[J]. Marine and Petroleum Geology, 2017, 86:386-401.
[24] 陈玲, 钟广见. 南海中建南盆地地震地层分析[J]. 石油物探, 2008, 47(6):609-616.
CHEN Ling, ZHONG Guangjian. Seismic stratigraphic analysis of Zhongjiannan Basin in South China Sea[J]. Geophysical Prospecting for Petroleum, 2008, 47(6):609-616.
[25] 张功成. 南海渐进式边缘海构造旋回控制深水油气成藏理论[J]. 石油学报, 2023, 44(4):569-582.
ZHANG Gongcheng. Theory of deepwater hydrocarbon accumulation controlled by progressive tectonic cycles of marginal sea in the South China Sea[J]. Acta Petrolei Sinica, 2023, 44(4):569-582.
