Lithologic Reservoirs ›› 2026, Vol. 38 ›› Issue (5): 51-59.doi: 10.12108/yxyqc.20260505

• PETROLEUM EXPLORATION • Previous Articles     Next Articles

Structural characteristics and formation mechanisms of Bashituopu Fault in southwestern Tarim Basin

WANG Bin1(), CHEN Lihao2,3(), YANG Liangang1, QU Yang1, YANG Pengfei1, TIAN Lei2,3, WANG Hongbin2,3, LIU Jun2,3

  1. 1 Research Institute of Petroleum Exploration and Development， PetroChina Tarim Oilfield Company， Korla 841000，Xinjiang, China
    2 Research Institute of Petroleum Exploration & Development-Northwest(NWGI)， PetroChina， Lanzhou 730020， China
    3 Key Laboratory of Reservoir Descripyion, CNPC， Lanzhou 730020， China
  • Received:2025-11-09 Revised:2026-03-11 Online:2026-09-01 Published:2026-09-04
  • Contact: CHEN Lihao E-mail:wangb3-tlm@petrochina.com.cn;chen_lh@petrochina.com.cn

RichHTML

14

PDF (PC)

13

Abstract:

Based on high-precision 3D seismic data, geometric characteristics of Bashituopu Fault in southwestern Tarim Basin are redetermined. Taking the F1 strike-slip fault and Bashituopu thrust fault on the top surface of Ordovician carbonate rocks as geological prototypes, a sandbox physical simulation model was constructed to systematically analyze the fault evolution mechanism and its controlling effect on hydrocarbon accumulation, and predict favorable exploration zones.The results show that: （1） Bashituopu fault zone is a steeply dipping strike-slip and thrust composite fault, with NE-trending transtensional strike-slip faults prominently developed. The thrust faults sections have a dip angle of 50°-65°, and the faults detach along Middle Cambrian gypsum-salt layer, presenting a typical structural feature of “lower fault and upper fold”. （2） The fault morpho-logy is controlled by the superposition of multi-stage and multi-direction compressive stress. During Caledonian period, NE-trending compression from the West Kunlun formed the prototype of strike-slip faults. In the Early Hercynian period, under SW-NE principal compressive stress, basement faults were reactivated and transformed, and large-scale strike-slip structures developed. From Late Hercynian to Indosinian period, intense SWW compression from the South Tianshan shifted the stress field from transtension to transpression, forming strike-slip and thrust composite faults, which is highly consistent with 3D seismic interpretation results. （3） The fault zone controls three stages of hydrocarbon accumulation evolution. Hydrocarbons accumulated in Cambrian subsalt strata in Caledonian period. In the Hercynian period, source-connected strike-slip faults transported hydrocarbons to Ordovician strata, forming paleo-oil reservoirs via lateral migration along unconformities,and during Himalayan period, structural adjustment transformed them into residual oil reservoirs. Multi-stage fault activities dominate hydrocarbon segmented enrichment. Fault fractures improve reservoir porosity and permeability, suprasalt thrust faults control trap morphology, segmented strike-slip faults construct charging pathways, reservoirs in high fault strain zones have optimal quality. Comprehensive analysis suggests that the eastern “beaded” reflection zone developed in deep F2 fault and secondary faults, and the source-connected strike-slip fault zone in Qungu 2 well area of Donghe sandstone intervals on the southern flank of the shallow structure, are core favorable exploration targets.

Key words: Bashitopu Fault, strike-slip and thrust composite fault, tectonic stress field, fault activity, sandbox experiment simulation, deep fault-related dissolution body, hydrocarbon accumulation, Ordovician carbonate reservoir, Tarim Basin

CLC Number:

  • TE121.3

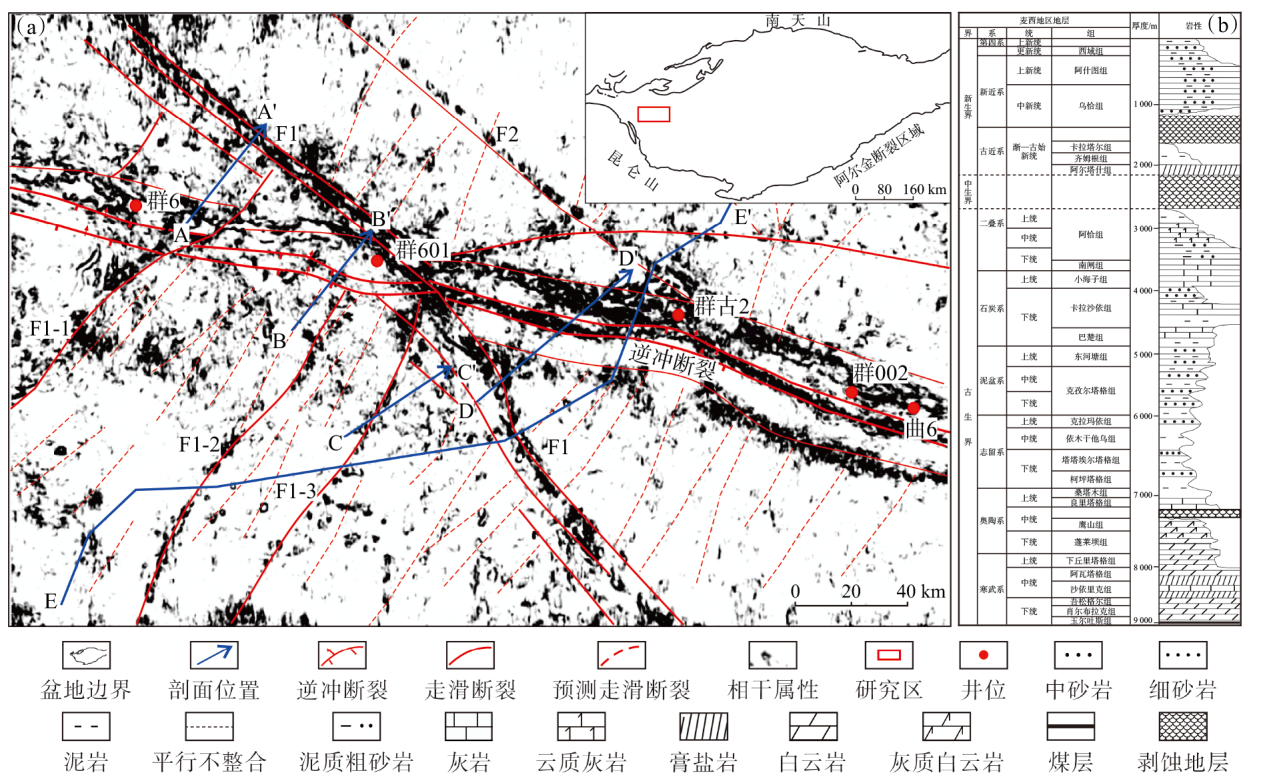

Fig. 1

Distribution characteristics of coherent faults on the top surface of Ordovician in Bashituopu Fault (a) and comprehensive stratigraphic column (b)，Tarim Basin"

Fig. 2

Outline of thrust and strike-slip faults and its seismic profile of Bashituopu Fault in southwestern Tarim Basin"

Table 1

Parameters settings for sandbox physical model of Paleozoic in Bashituopu Fault of southwestern Tarim Basin"

材料类别 L g ρ1 ρ2 μ 应力 应变速率
模型 1.0×10-2 9.8 1 300.00 987.00 1.20×104 α ε
实际工区 5.0×103 9.8 2 400.00 2 200.00 10.00×1018
模型/实际工区 2.0×10-6 1.0 0.54 0.45 0.12×10-14 1.08×10-6 1.30×105

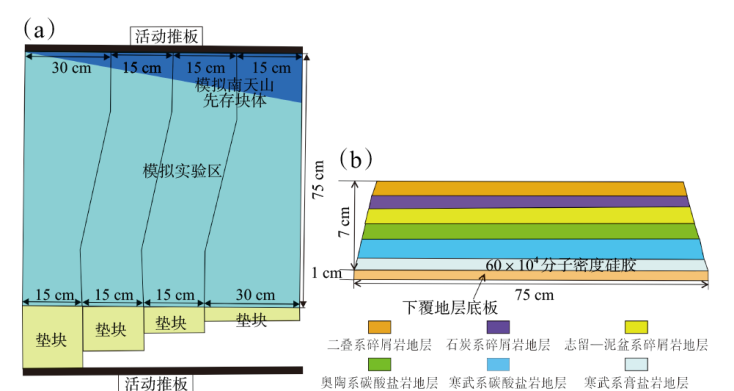

Fig. 3

Bottom plate design scheme （a） and laying of the experimental strata （b） for sandbox physical model of Bashituopu Fault in southwestern Tarim Basin"

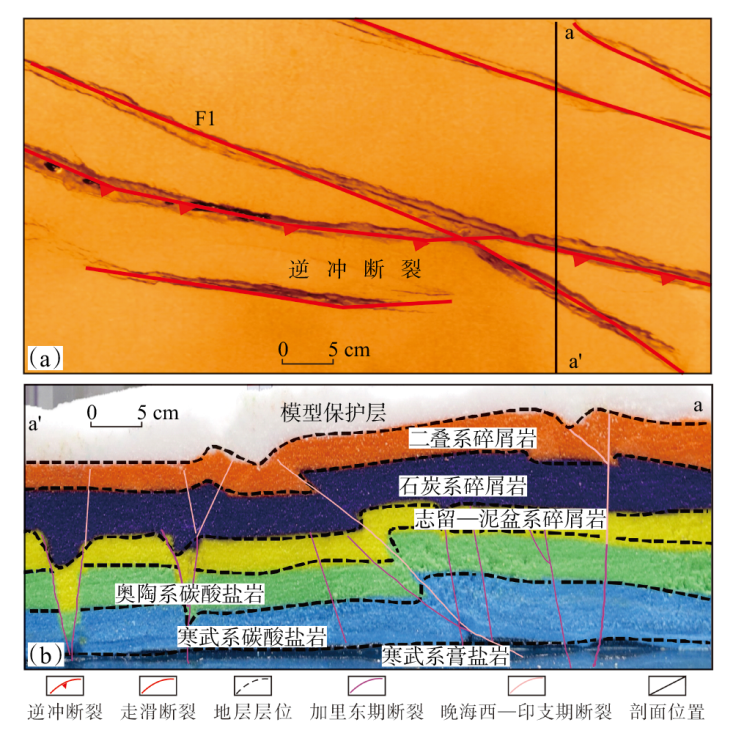

Fig. 4

Plan structural system of strike-slip and thrust faults simulated by sandbox physical model （a） and cross-section features (b) of Bashituopu Fault in southwestern Tarim Basin"

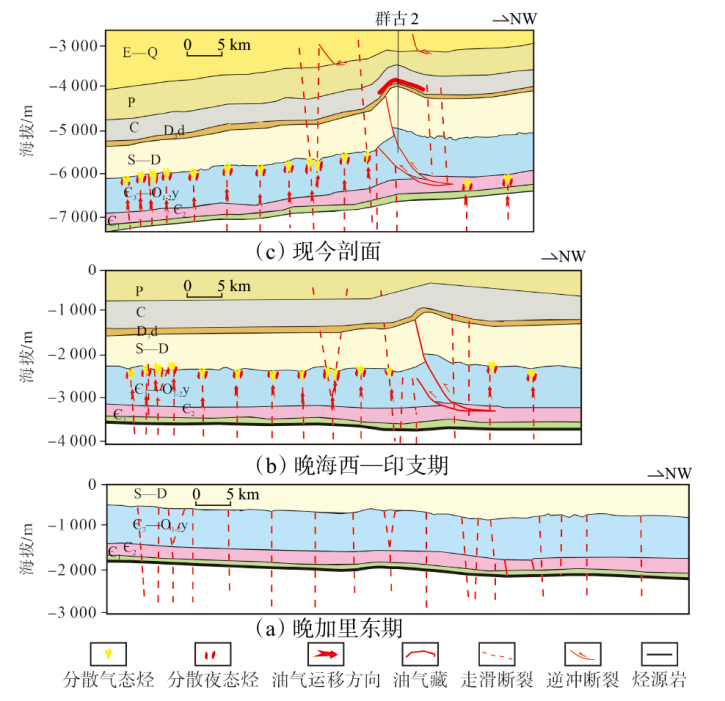

Fig. 5

Hydrocarbon accumulation models of Bashituopu fault zone in southwestern Tarim Basin"

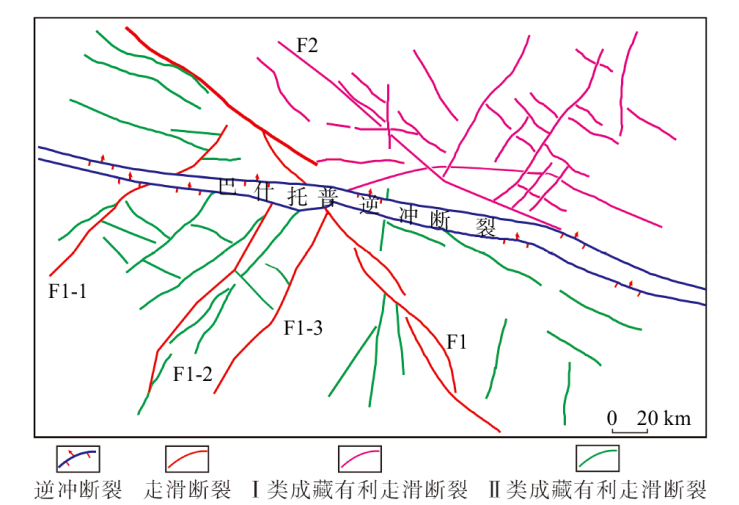

Fig. 6

Distribution prediction of favorable faults for hydrocarbon accumulation of Bashituopu Fault in southwestern Tarim Basin"

[1] 胡建中, 谭应佳, 张平, 等. 塔里木盆地西南缘山前带逆冲推覆构造特征[J]. 地学前缘, 2008, 15(2):222-231.
HU Jianzhong, TAN Yingjia, ZHANG Ping, et al. Structural features of Cenozoic thrust-fault belts in the piedmont of southwestern Tarim Basin[J]. Earth Science Frontiers, 2008, 15(2):222-231.
[2] 肖安成, 杨树锋, 王清华, 等. 塔里木盆地巴楚—柯坪地区南北向断裂系统的空间对应性研究[J]. 地质科学, 2002, 37 (增刊1):64-72.
XIAO Ancheng, YANG Shufeng, WANG Qinghua, et al. Corresponding relation of S-N-striking fault systems in the Bachu-Kalpin area,Tarim Basin[J]. Chinese Journal of Geology (Scientia Geologica Sinica), 2002, 37 (Suppl 1):64-72.
[3] 张强, 黄太柱, 李慧莉, 等. 塔里木盆地西部的新生代断裂活动特征[J]. 岩石学报, 2016, 32(3):833-846.
ZHANG Qiang, HUANG Taizhu, LI Huili, et al. The Cenozoic faults in western Tarim Basin,NW China[J]. Acta Petrologica Sinica, 2016, 32(3):833-846.
[4] 孟庆龙, 李曰俊, 敬兵, 等. 塔里木盆地西部巴什托普断裂的主要特征及其油气勘探意义[J]. 地质科学, 2008, 43 (3):569-575.
MENG Qinglong, LI Yuejun, JING Bing, et al. Main characte-ristics of the Bashituopu fault and its petroleum potential in the western Tarim Basin[J]. Chinese Journal of Geology, 2008, 43(3):569-575.
[5] 丁文龙, 漆立新, 云露, 等. 塔里木盆地巴楚—麦盖提地区古构造演化及其对奥陶系储层发育的控制作用[J]. 岩石学报, 2012, 28(8):2542-2556.
DING Wenlong, QI Lixin, YUN Lu, et al. The tectonic evolution and its controlling effects on the development of Ordovician reservoir in Bachu-Markit Tarim basin[J]. Acta Petrologica Sinica, 2012, 28(8):2542-2556.
[6] 唐大卿, 陈红汉, 云露, 等. 塔里木盆地巴楚隆起断裂差异活动特征及成因演化[J]. 地质科学, 2014, 49(1):49-68.
TANG Daqing, CHEN Honghan, YUN Lu, et al. The differential activity characteristics and its evolution of the faults in the Bachu Uplift,Tarim Basin[J]. Chinese Journal of Geology, 2014, 49(1):49-68.
[7] 陈秀艳, 孙崇浩, 陶小晚, 等. 塔里木盆地麦盖提斜坡西段成藏演化与有利勘探区域:以巴什托普油田为例[J]. 地质科学, 2024, 59(4):991-1002.
CHEN Xiuyan, SUN Chonghao, TAO Xiaowan, et al. Hydrocarbon accumulation and favorable exploration areas in the western Maigaiti slope of Tarim Basin:A case study of Bashituo-pu oilfield[J]. Chinese Journal of Geology, 2024, 59(4):991-1002.
[8] 张厚福, 徐兆辉. 从油气藏研究的历史论地层-岩性油气藏勘探[J]. 岩性油气藏, 2008, 20(1):114-123.
ZHANG Houfu, XU Zhaohui. Discussion on stratigraphic-lithologic reservoirs exploration in the aspect of the research history of reservoirs[J]. Lithologic Reservoirs, 2008, 20(1):114-123.
[9] 汤良杰, 漆立新, 邱海峻, 等. 塔里木盆地断裂构造分期差异活动及其变形机理[J]. 岩石学报, 2012, 28(8):2569-2583.
TANG Liangjie, QI Lixin, QIU Haijun, et al. Poly-phase diffe-rential fault movement and hydrocarbon accumulation of the Tarim Basin,NW China[J]. Acta Petrologica Sinica, 2012, 28(8):2569-2583.
[10] 肖阳, 邬光辉, 雷永良, 等. 走滑断裂带贯穿过程与发育模式的物理模拟[J]. 石油勘探与开发, 2017, 44(3):340-348.
XIAO Yang, WU Guanghui, LEI Yongliang, et al. Analogue modeling of through-going process and development pattern of strike-slip fault zone[J]. Petroleum Exploration and Development, 2017, 44(3):340-348.
[11] 曹自成, 蒋华山, 张俊程, 等. 塔里木盆地西南地区前寒武纪基底结构及其演化[J]. 石油实验地质, 2023, 45(5):844-856.
CAO Zicheng, JIANG Huashan, ZHANG Juncheng, et al. Structure and evolution of Precambrian basement in southwestern Tarim Basin[J]. Petroleum Geology & Experiment, 2023, 45(5):844-856.
[12] 杨勇, 汤良杰, 蒋华山, 等. 塔里木盆地巴楚隆起断裂分期差异活动特征及其变形机理[J]. 石油实验地质, 2014, 36(3):275-284.
YANG Yong, TANG Liangjie, JIANG Huashan, et al. Characteristics and deformation mechanism of staging differential fault activities in Bachu Uplift,Tarim Basin[J]. Petroleum Geo-logy & Experiment, 2014, 36(3):275-284.
[13] 肖安成, 杨树锋, 李曰俊, 等. 塔里木盆地巴楚隆起断裂系统主要形成时代的新认识[J]. 地质科学, 2005, 40(2):291-302.
XIAO Ancheng, YANG Shufeng, LI Yuejun, et al. Main period for creation of fracture system in the Bachu uplift,Tarim Basin[J]. Chinese Journal of Geology(Scientia Geologica Sinica), 2005, 40(2):291-302.
[14] 肖安成, 贾承造, 杨树锋, 等. 中国南天山西部冲断褶皱系前缘区的运动学特征[J]. 沉积学报, 2000, 18(3):439-444.
XIAO Ancheng, JIA Chengzao, YANG Shufeng, et al. The kinematics characters of the thrust-foldbelts western front regions in Southern Tianshan,China[J]. Acta Sedimentologica Sinica, 2000, 18(3):439-444.
[15] 邬光辉, 成丽芳, 刘玉魁, 等. 塔里木盆地寒武-奥陶系走滑断裂系统特征及其控油作用[J]. 新疆石油地质, 2011, 32(3):239-243.
WU Guanghui, CHENG Lifang, LIU Yukui, et al. Strike-slip fault system of the Cambrian-Ordovician and its oil-controlling effect in Tarim Basin[J]. Xinjiang Petroleum Geology, 2011, 32(3):239-243.
[16] 丁文龙, 林畅松, 漆立新, 等. 塔里木盆地巴楚隆起构造格架及形成演化[J]. 地学前缘, 2008, 15(2):242-252.
DING Wenlong, LIN Changsong, QI Lixin, et al. Structural framework and evolution of Bachu uplift in Tarim basin[J]. Earth Science Frontiers, 2008, 15(2):242-252.
[17] 刘高波, 施泽进, 佘晓宇. 巴楚—麦盖提的区域构造演化与油气分布规律[J]. 成都理工大学学报(自然科学版), 2004, 31( 2):157-161.
LIU Gaobo, SHI Zejin, SHE Xiaoyu. Regional tectonic evolution and distribution of Bachu-Markit[J]. Journal of Chengdu University of Technology (Science & Technology Edition), 2004, 31(2):157-161.
[18] 张仲培, 刘士林, 杨子玉, 等. 塔里木盆地麦盖提斜坡构造演化及油气地质意义[J]. 石油与天然气地质, 2011, 32(6):909-919.
ZHANG Zhongpei, LIU Shilin, YANG Ziyu, et al. Tectonic evolution and its petroleum geological significances of the Maigaiti Slop,Tarim Basin[J]. Oil & Gas Geology, 2011, 32(6):909‑919.
[19] 崔海峰, 田雷, 刘军, 等. 塔西南坳陷麦盖提斜坡油气成藏模式[J]. 中国石油勘探, 2016, 21(6):34‑42.
CUI Haifeng, TIAN Lei, LIU Jun, et al. Hydrocarbon accumulation pattern of reservoirs in Maigaiti slope,Southwest Tarim depression[J]. China Petroleum Exploration, 2016, 21(6):34‑42.
[20] 汤良杰, 邱海峻, 云露, 等. 塔里木盆地北缘—南天山造山带盆-山耦合和构造转换[J]. 地学前缘, 2012, 19(5):195-204.
TANG Liangjie, QIU Haijun, YUN Lu, et al. Analysis of basin-mountain coupling and transition of the Northern Tarim Basin-Southern Tianshan Orogenic Belt[J]. Earth Science Frontiers, 2012, 19(5):195-204.
[21] 熊加贝, 何登发. 全球碳酸盐岩地层-岩性大油气田分布特征及其控制因素[J]. 岩性油气藏, 2022, 34(1):187-200.
XIONG Jiabei, HE Dengfa. Distribution characteristics and controlling factors of global giant carbonate stratigraphic-lithologic oil and gas fields[J]. Lithologic Reservoirs, 2022, 34(1):187-200.
[22] 刘高波. 巴楚一麦盖提地区构造演化与油气分布关系[D]. 成都: 成都理工大学, 2005.
LIU Gaobo. The relationship between structural evolution and hydrocarbon distribution in the Bachu-Maigaiti region[D]. Chengdu: Chengdu University of Technology, 2005.
[23] 牛一奎. 塔西南坳陷麦盖提斜坡下古生界油气成藏规律[D]. 北京: 中国石油大学(北京), 2022.
NIU Yikui. Hydrocarbon accumulation regularity of lower Paleozoic in Maigaiti Slope,southwest depression of Tarim Basin[D]. Beijing: China University of Petroleum (Beijing), 2022.
[24] MCClAY K, BONORA M. Analog models of restraining stepovers in strike-slip fault systems[J]. AAPG Bulletin, 2001, 85(2):233-260.
[25] RITTER M C, LEEVER K, ROSENAU M, et al. Scaling the sandbox-mechanical (dis) similarities of granular materials and brittle rock[J]. Journal of Geophysical Research:Solid Earth, 2016, 121(9):6863-6879.
[26] FEDORIK J, ZWAAN F, SCHREURS G, et al. The interaction between strike-slip dominated fault zones and thrust belt structures:Insights from 4D analogue models[J]. Journal of Structural Geology, 2019, 122:89-105.
[27] D’ADDA P, LONGONI R, MAGISTRONI C, et al. Extensional reactivation of a deep transpressional architecture:Insights from sandbox analogue modeling applied to the Val d’Agri Basin (Southern Apennines,Italy)[J]. Interpretation, 2017, 5(1):SD55-SD66.
[28] ADAM J, URAI J L, WIENEKE B, et al. Shear localisation and strain distribution during tectonic faulting:New insights from granular-flow experiments and high-resolution optical image correlation techniques[J]. Journal of Structural Geology, 2005, 27(2):283-301.
[29] HUS R, ACOCELLA V, FUNICIELLO R, et al. Sandbox models of relay ramp structure and evolution[J]. Journal of Structural Geology, 2005, 27(3):459-473.
[30] DUVALL M J, WALDRON J W F, GODIN L, et al. Active strike-slip faults and an outer frontal thrust in the Himalayan foreland basin[J]. PNAS, 2020, 117(30):17615-17621.
[31] BARNETT J A M, MORTIMER J, RIPPON J H, et al. Displacement geometry in the volume containing a single normal fault[J]. AAPG Bulletin, 1987, 71(8):925-937.
[32] CHAMPION J, MUELLER K, TATE A, et al. Geometry,numerical models and revised slip rate for the Reelfoot fault and trishear fault-propagation fold,New Madrid seismic zone[J]. Engineering Geology, 2001, 62(1/2/3):31-49.
[33] DOOLEY T P, SCHREURS G. Analogue modelling of intraplate strike-slip tectonics:A teview and new rxperimental tesults[J]. Tectonophysics, 2012,574-575:1-71.
