Lithologic Reservoirs ›› 2026, Vol. 38 ›› Issue (5): 170-178.doi: 10.12108/yxyqc.20260516

• PETROLEUM ENGINEERING AND OIL & GAS FIELD DEVELOPMENT • Previous Articles     Next Articles

Experiment on the fracability of coal rocks based on CT scanning and 3D reconstruction

ZENG Fanhui1(), YANG Weixin1,2, GUO Jianchun1, ZHANG Yu1, ZHANG Ran3

  1. 1 State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation·Southwest Petroleum University, Chengdu 610500， China
    2 Sinopec Exploration Company, Chengdu 610500， China
    3 School of Mechanical Engineering, Xihua University, Chengdu 611743， China
  • Received:2025-09-17 Revised:2025-11-15 Online:2026-09-01 Published:2026-09-04

RichHTML

13

PDF (PC)

16

Abstract:

In response to the problem that conventional fracability evaluation methods for coalbed methane reservoirs are difficult to balance fracture morphology and flow connectivity, fracturing comparison experiments were conducted using a true triaxial hydraulic fracturing system on four groups of raw coal cubic specimens with dimensions of 200 mm×200 mm×200 mm under varying conditions of fracturing fluid, in-situ stress difference, and pumping rate. Combined with high-resolution CT scanning and 3D reconstruction technology, the fracture surface area was quantitatively obtained and the 3D fractal dimension was calculated. Fracability was defined as the total fracture surface area per unit modified reservoir volume, and effects of in-situ stress conditions and fracturing fluid type on fracture development characteristics were systematically analyzed. Research results show that: （1） With low viscosity and strong diffusivity, liquid CO2 can effectively increase pore pressure and reduce breakdown pressure, thus significantly improve the fracture complexity. Compared with clear water, liquid CO2 as a fracturing fluid reduces the initiation pressure by 13.8% and increases the fracture surface area by 50.1%. （2） Fracture complexity is highly positively correlated with the 3D fractal dimension, which can be used as an effective quantitative index to characterize reservoir fracability. （3） Under the same experimental conditions, when the horizontal principal stress difference decreases from 5.00 MPa to 3.00 MPa, reservoir fracability increases by 14.7%.When the pumping rate increases from 30 mL/min to 60 mL/min, reservoir fracability increases by 11.3%. Compared with water fracturing, liquid CO2 fracturing improves reservoir fracability by 50.7%.

Key words: coal rock, true triaxial fracturing experiment, CO2 fracturing, fracture propagation, 3D reconstruction, fractal dimension, fracture surface area

CLC Number:

  • TE371

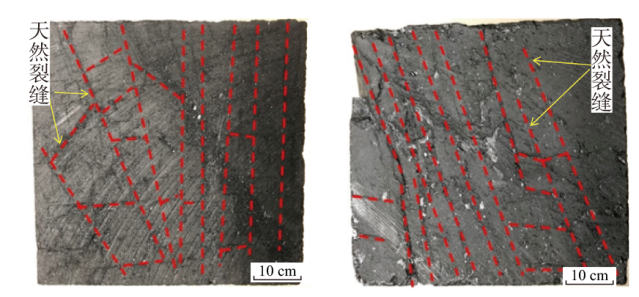

Fig. 1

Development of natural fractures in coal rocks at 600 m depth of No. 3 coal seam of Lower Permian Shanxi Formation in well TS-X of Datong Coal Mine, Jincheng, Shanxi province"

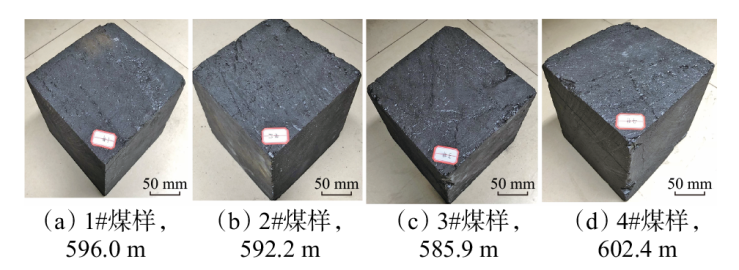

Fig. 2

Core samples for true triaxial fracturing experiment of coal seams from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

Table 1

Test results of natural fracture density and mechanical parameters of coal rocks from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

煤样 天然裂缝密度/（条·m-2） 杨氏模量/MPa 泊松比
1# 45 5 563.58 0.29
2# 47 4 570.56 0.31
3# 42 4 860.51 0.34
4# 56 2 920.32 0.41

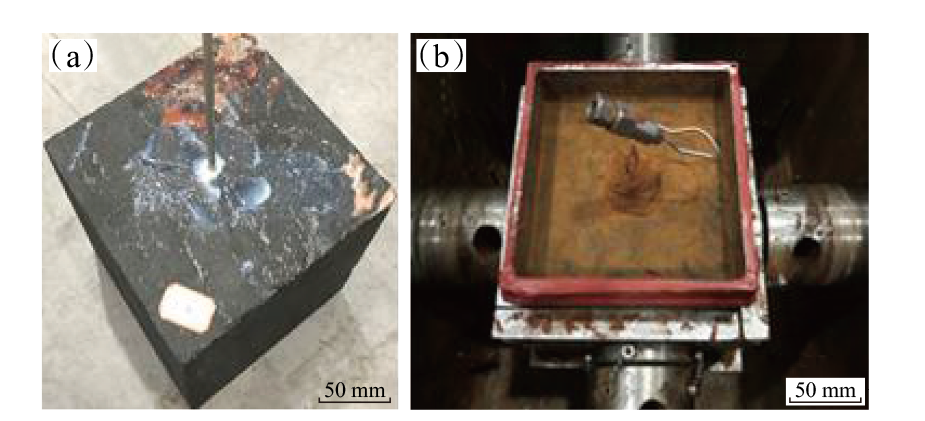

Fig. 3

Drilling simulated wellbore (a) and sealing glue （b） of coal rocks from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

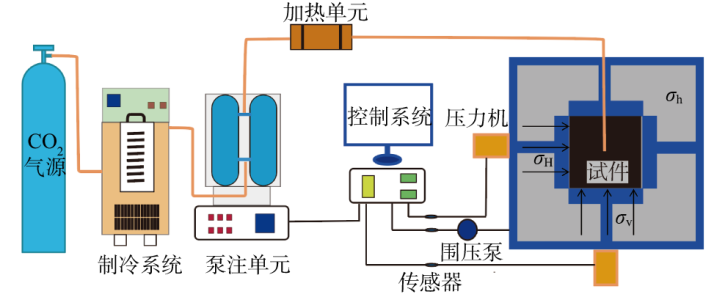

Fig. 4

Equipments of true triaxial fracturing simulation experiment"

Table 2

Parameter settings for true triaxial fracturing simulation experiment of coal rocks from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

煤样 压裂
介质		 最小水平
主应力/MPa		 最大水平
主应力/MPa		 垂向
应力/MPa		 泵注速率/(mL·min-1)
1# 液态CO2 7.00 12.00 9.00 30
2# 液态CO2 7.00 10.00 9.00 60
3# 液态CO2 7.00 10.00 9.00 30
4# 清水 7.00 10.00 9.00 60

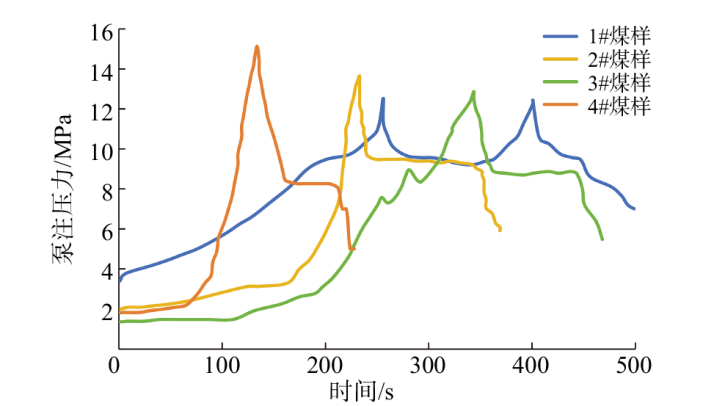

Fig. 5

Pumping curve during fracturing of true triaxial fracturing simulation experiment on coal samples from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

Fig. 6

2D fracture plane features after true triaxial fracturing simulation experiment of coal rocks from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

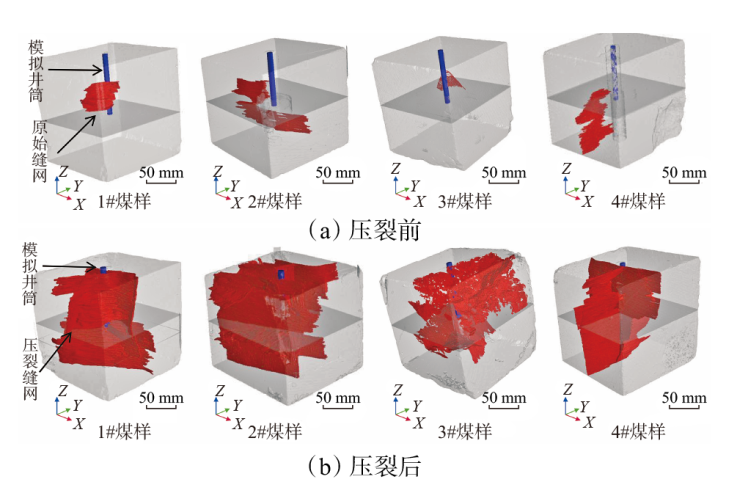

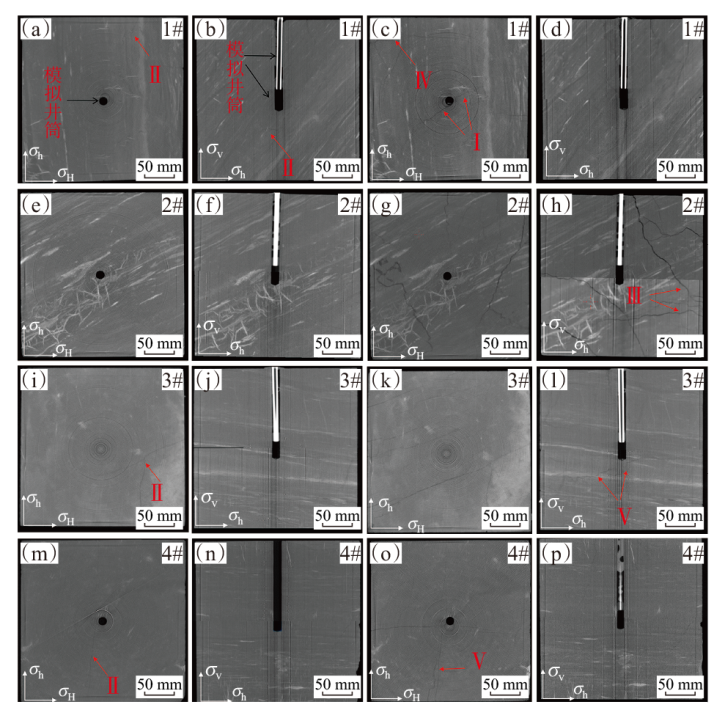

Fig. 7

3D CT images of fractures before and after true triaxial fracturing simulation experiment of coal samples from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

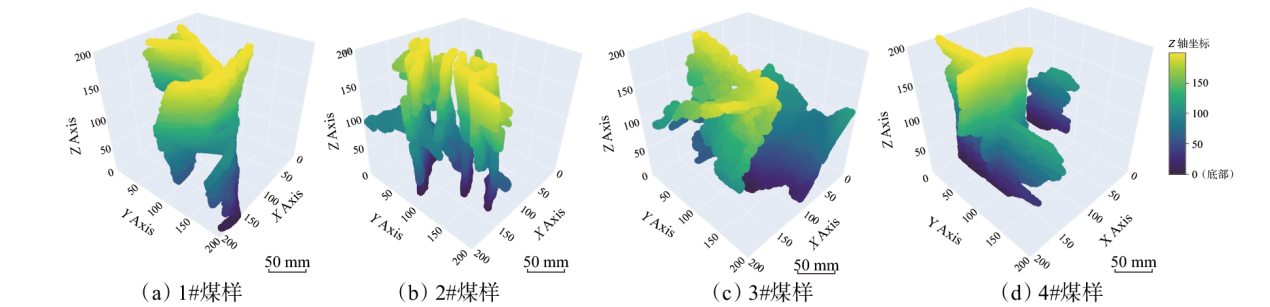

Fig. 8

3D fracture models after true triaxial fracturing simulation experiment of coal samples from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

Table 3

Fracture surface area per unit modified reservoir volume and fractal dimension after fracturing of true triaxial fracturing simulation experiment of coal samples from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

煤样 压裂
介质		 压裂前裂缝
面积/104 mm2		 压裂后裂缝
面积/104 mm2		 裂缝面积增量/104 mm2 单位改造体积内裂缝的
总表面积/（10-2 mm2·mm-3）		 裂缝二维
分形维数		 裂缝三维
分形维数
1# 液态CO2 0.007 2 13.58 13.57 1.70 1.091 2.087
2# 液态CO2 1.450 0 17.32 15.87 2.17 1.127 2.212
3# 液态CO2 0.007 6 15.64 15.63 1.95 1.152 2.163
4# 清水 2.080 0 11.54 9.46 1.44 1.052 2.058

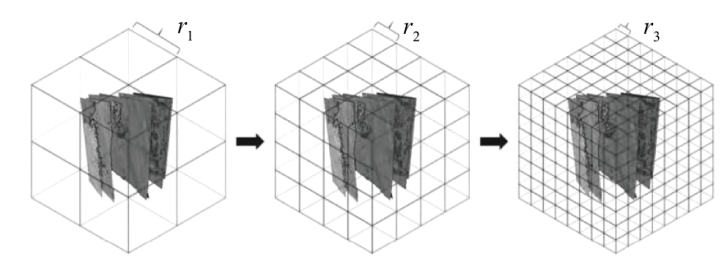

Fig. 9

Workflow diagram of 3D box-counting method"

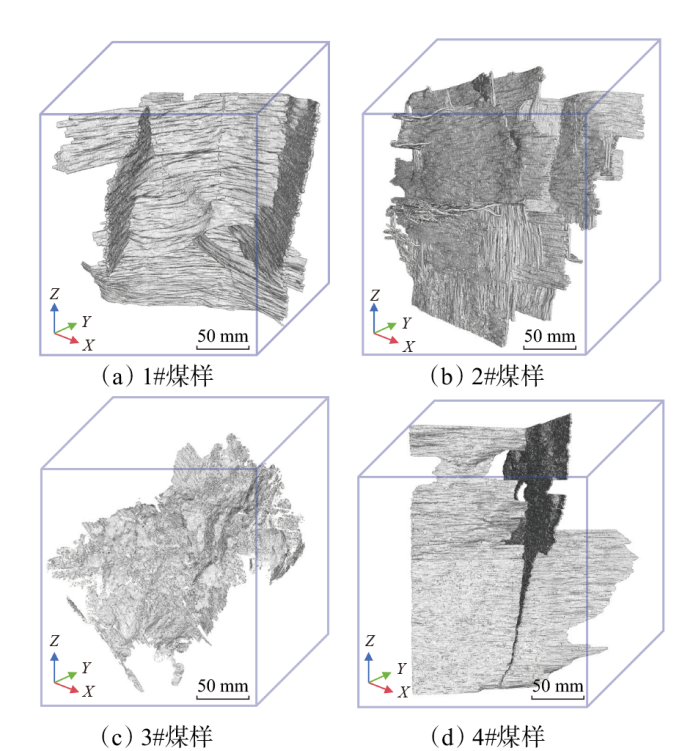

Fig. 10

Schematic diagram of 3D reconstructed fractures by box-counting method after fracturing of true triaxial fracturing simulation experiment of coal samples from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

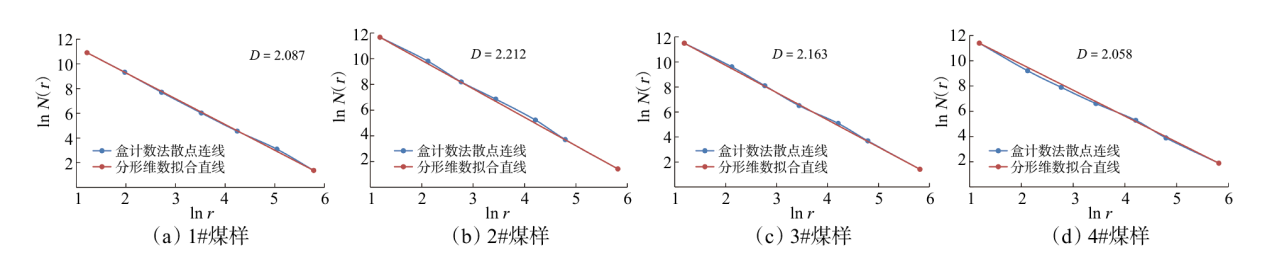

Fig. 11

3D fractal dimension of fractures after true triaxial fracturing simulation experiment of coal samples from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"

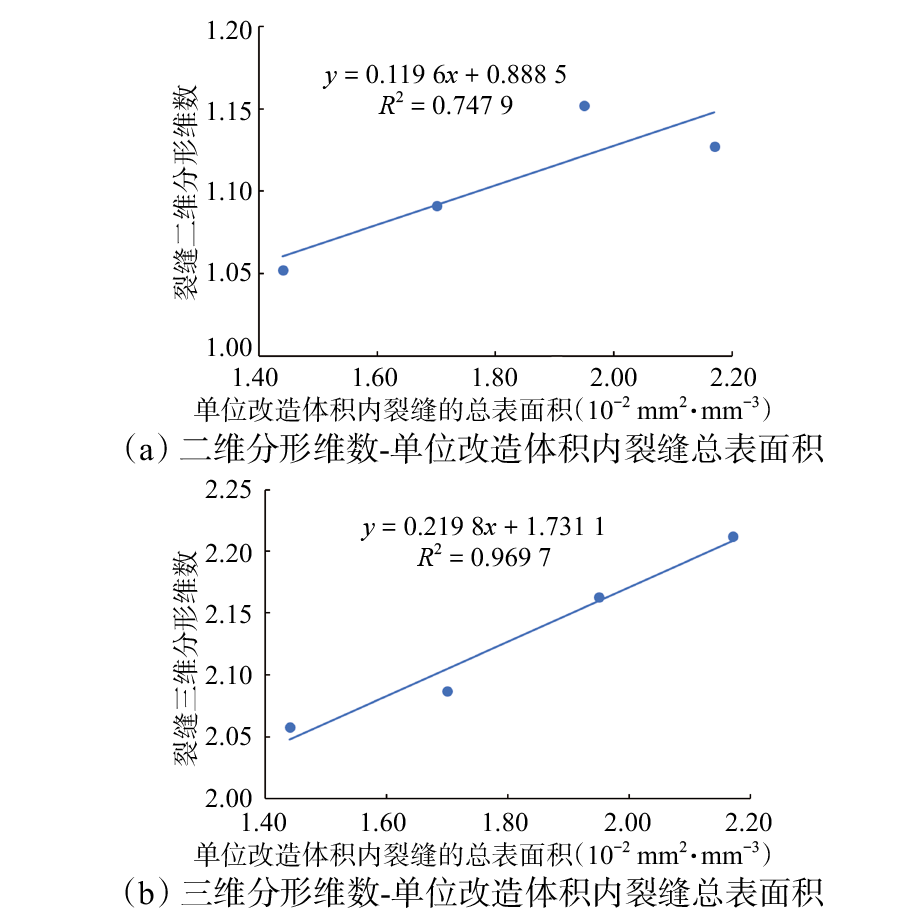

Fig. 12

Fitting relationship between fracture fractal dimension and total fracture surface area per unit modified reservoir volume after simulation experiment of coal samples from Lower Permian Shanxi Formation in Datong Coal Mine, Jincheng, Shanxi province"
