岩性油气藏 ›› 2026, Vol. 38 ›› Issue (2): 145–152.doi: 10.12108/yxyqc.20260213

• 地质勘探 • 上一篇    下一篇

渤海湾盆地盆缘庙西南地区构造特征及控藏作用

赵野1(), 许鹏1, 胡贺伟1, 王航1, 杨娇娇2

  1. 1 中海石油（中国）有限公司天津分公司 渤海石油研究院， 天津 300459
    2 中海油能源发展股份有限公司 工程技术公司， 天津 300459
  • 收稿日期:2025-07-15 修回日期:2025-08-21 出版日期:2026-03-01 发布日期:2025-12-16
  • 第一作者:赵野（1986—），男，硕士，高级工程师，主要从事石油地质综合研究方面的工作。地址：（300459）天津市滨海新区海川路2121号渤海油田大厦B座。Email:zhaoye4@cnooc.com.cn。
  • 基金资助:
    中国海洋石油有限公司“十四五”重大科技项目“地层岩性油气藏高效识别与精细评价技术”(KJGG2022-0303)

Tectonic characteristics of Miaoxinan area at the margin of Bohai Bay Basin and their controls on hydrocarbon accumulation

ZHAO Ye1(), XU Peng1, HU Hewei1, WANG Hang1, YANG Jiaojiao2

  1. 1 Bohai Oilfield Research Institute, Tianjin Branch of CNOOC Ltd., Tianjin 300452, China
    2 Engineering Technology Company, CNOOC Energy Development Co., Ltd., Tianjin 300452, China
  • Received:2025-07-15 Revised:2025-08-21 Online:2026-03-01 Published:2025-12-16

RichHTML

0

PDF (PC)

11

摘要：

综合应用三维地震资料、钻测井资料及地球化学测试资料对渤海湾盆地庙西南地区洼陷结构、构造演化特征、烃源岩分布及控藏作用进行了研究。研究结果表明：①庙西南地区为郯庐走滑断裂改造型洼陷，始新世中晚期，在近东西向挤压应力场作用下，洼陷结构由NWW向转变为NEE向，沙河街组四段由东向西遭受剥蚀强度逐渐减弱，东侧庙西南洼沙四段烃源岩剥蚀殆尽，西侧黄河口东洼沙四段高硫咸化优质烃源岩得以保留。②黄河口东洼发育深切至沙三段—沙四段烃源岩的长期活动断裂，油气沿通源断层向上运聚，具有深、浅层复式成藏特征。③庙西南洼陷仅发育低熟的沙三段烃源岩，且通源断层晚期活动性差，油气难以突破东营组厚层泥岩盖层，仅在深层沙一段和沙二段发现天然气藏。始新世中晚期，中国东部近东西向挤压活动对盆缘洼陷结构、烃源岩展布、油气成藏均具有重要控制作用。

关键词: 郯庐走滑断裂, 洼陷结构, 差异剥蚀, 通源断层, 烃源岩, 沙河街组, 始新世, 庙西南地区, 渤海湾盆地

Abstract:

Using three-dimensional seismic data, drilling and logging data, and geochemical testing data，the depression structure, structural evolution characteristics, source rock distribution, and controlling effects of hydrocarbon accumulation in Miaoxinan area of Bohai Bay Basin were studied. The results show that: （1） Miaoxinan area is a transformed depression formed by the Tan-Lu strike-slip fault. During Middle-Late Eocene, the near east-west regional compression movement led to the transformation of the depression structure from NWW to NEE, the fourth section of Shahejie Formation (E2s4) was gradually weakened in erosion intensity from east to west, and source rocks of E2s4 in south sag of Miaoxi Sag on the east side were completely eroded. The high-sulfur and salty high-quality source rocks of E2s4 in the east sag of Huanghekou Sag on the west side have been preserved. （2） The east sag of Huanghekou Sag has developed long-term active faults that extend deep into source rocks of E2s3 and E2s4, oil and gas migrate and accumulate upward along the source-connecting faults, demonstrating the characteristics of deep and shallow compound hydrocarbon accumulation. （3） The south sag of Miaoxi Sag has only developed low-maturity hydrocarbon source rocks in E2s3, and the late stage activity of source-connecting faults is poor, oil and gas are difficult to break through the thick mudstone cap of Dongying Formation, and natural gas reserves have only been discovered in deep E2s1 and E2s2. In Middle-Late Eocene, the near east and west compression activities of eastern China played an important controlling role in the structure of basin margin depression, the distribution of source rocks and the accumulation of oil and gas.

Key words: Tan-Lu strike-slip fault, depression structure, differential erosion, source-connecting fault, source rocks, Shahejie Formation, Eocene, Miaoxinan area, Bohai Bay Basin

中图分类号:

  • TE122.1

图1

渤海湾盆地庙西南地区位置（a）、新生界底面地貌形态（b）及古近系岩性地层综合柱状图（c）"

图2

渤海湾盆地庙西南地区东西向洼陷结构剖面（剖面位置见图1a）"

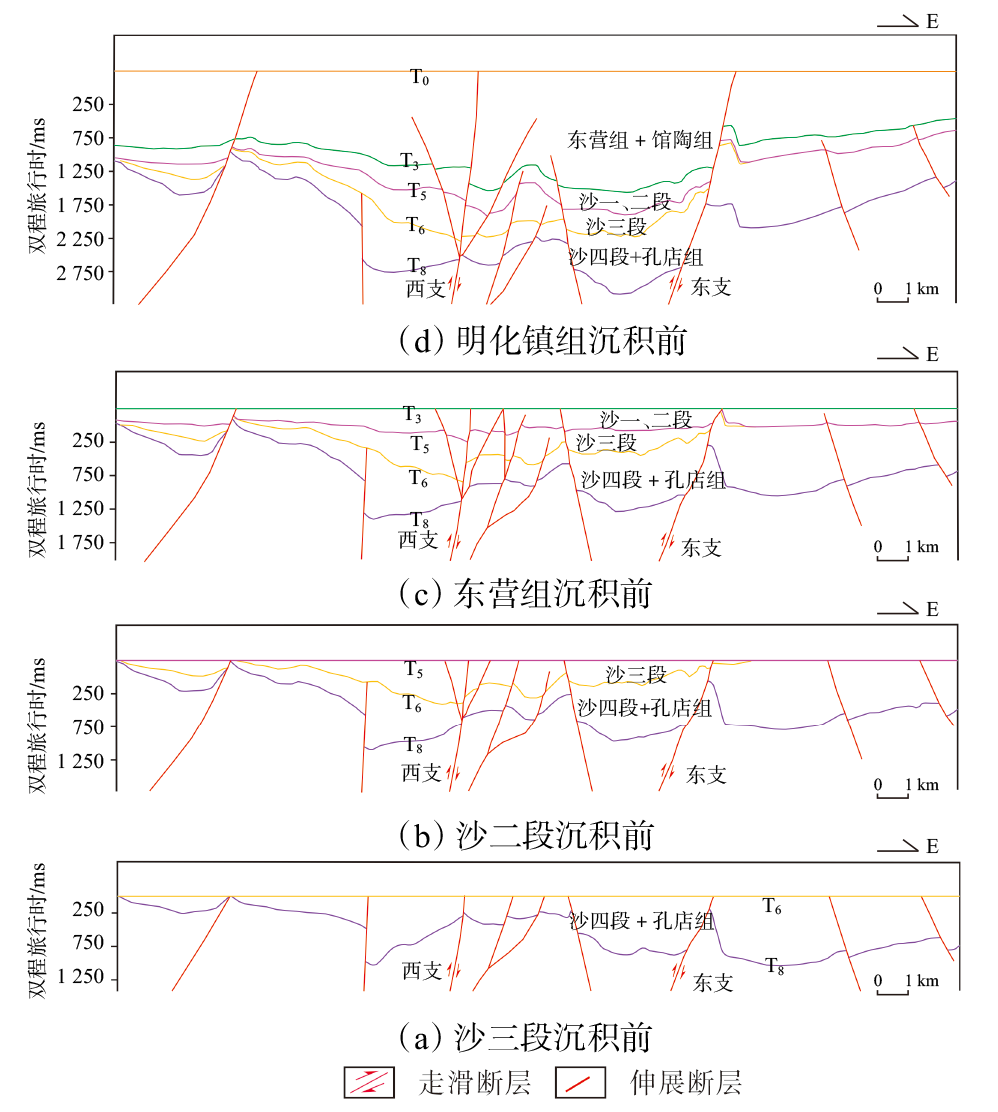

图3

渤海湾盆地庙西南地区东西向洼陷构造演化剖面"

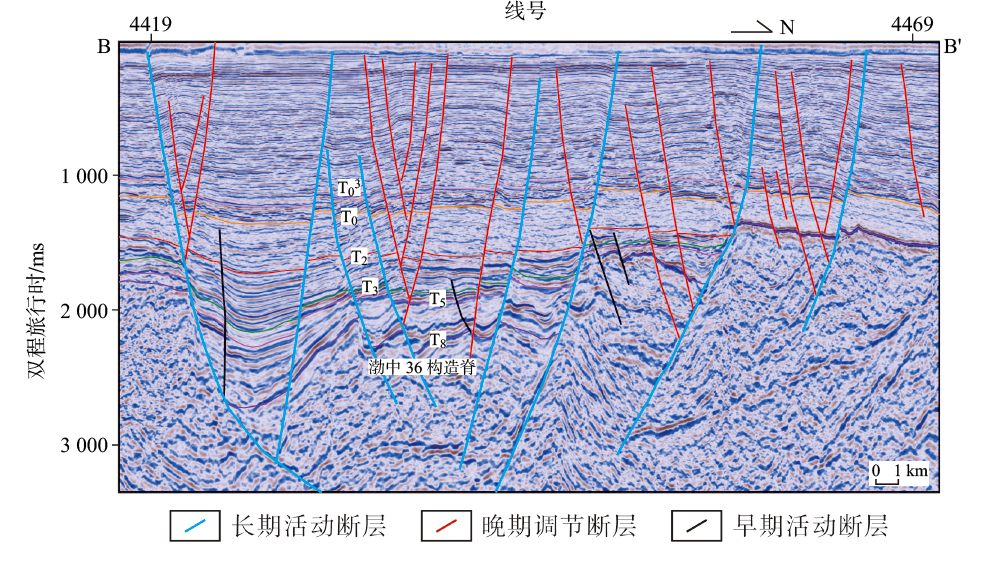

图4

渤海湾盆地黄河口东洼近南北向结构剖面（剖面位置见图1a）"

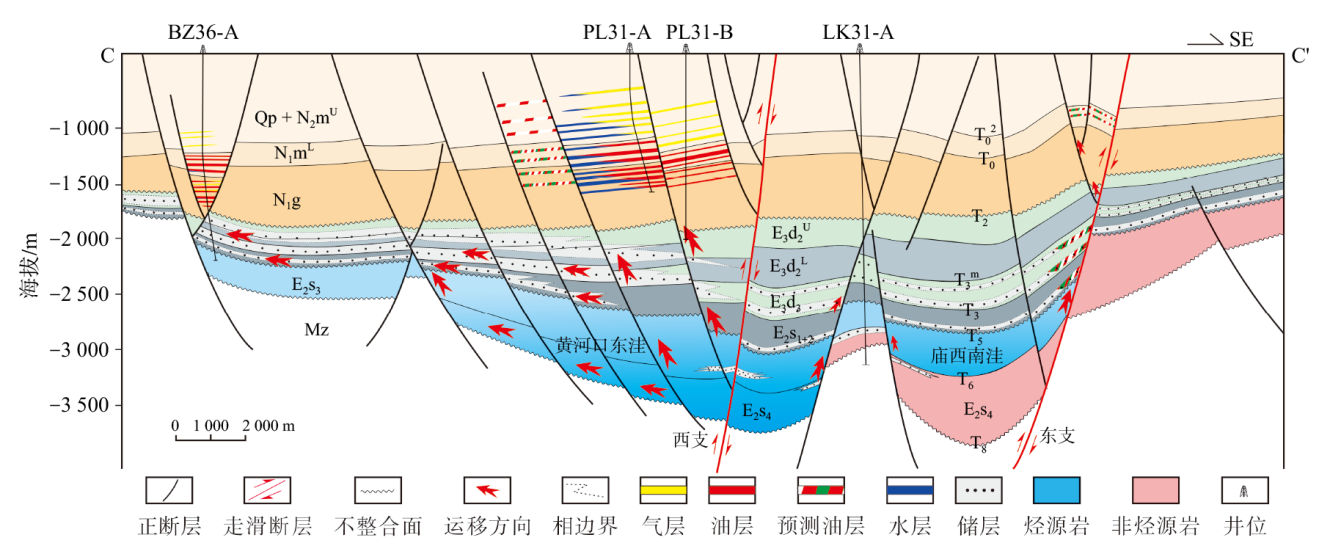

图5

渤海湾盆地庙西南地区东西向油藏对比剖面（剖面位置见图1a）"

图6

渤海湾盆地黄河口东洼与庙西南洼油源对比"

图7

渤海湾盆地庙西南地区近东西向地震剖面（a）及T6层拉平地震剖面（b）（剖面位置见图1a）"

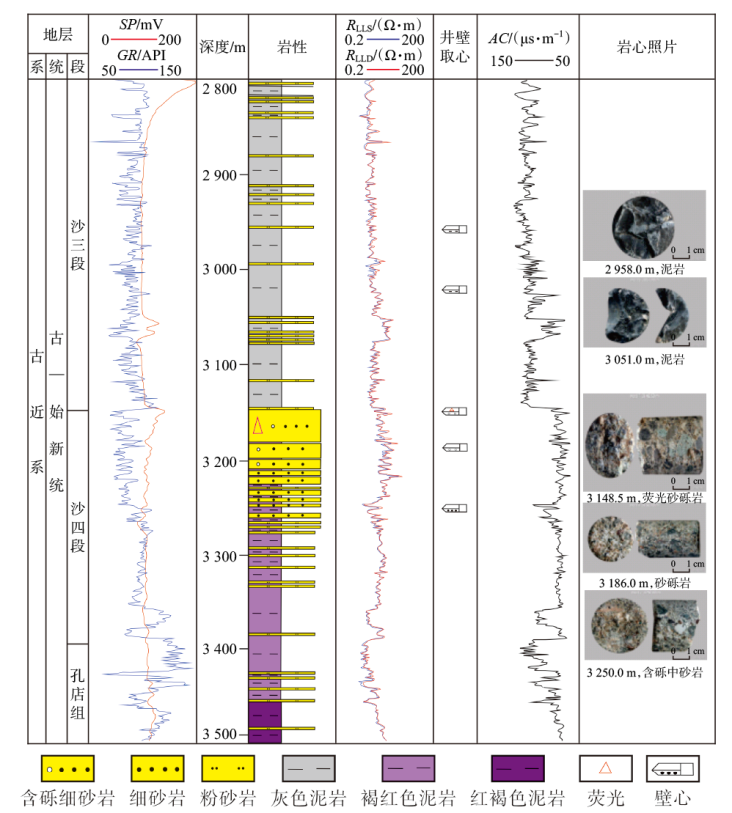

图8

渤海湾盆地庙西南地区LK31-A井沙四段岩性组合特征"

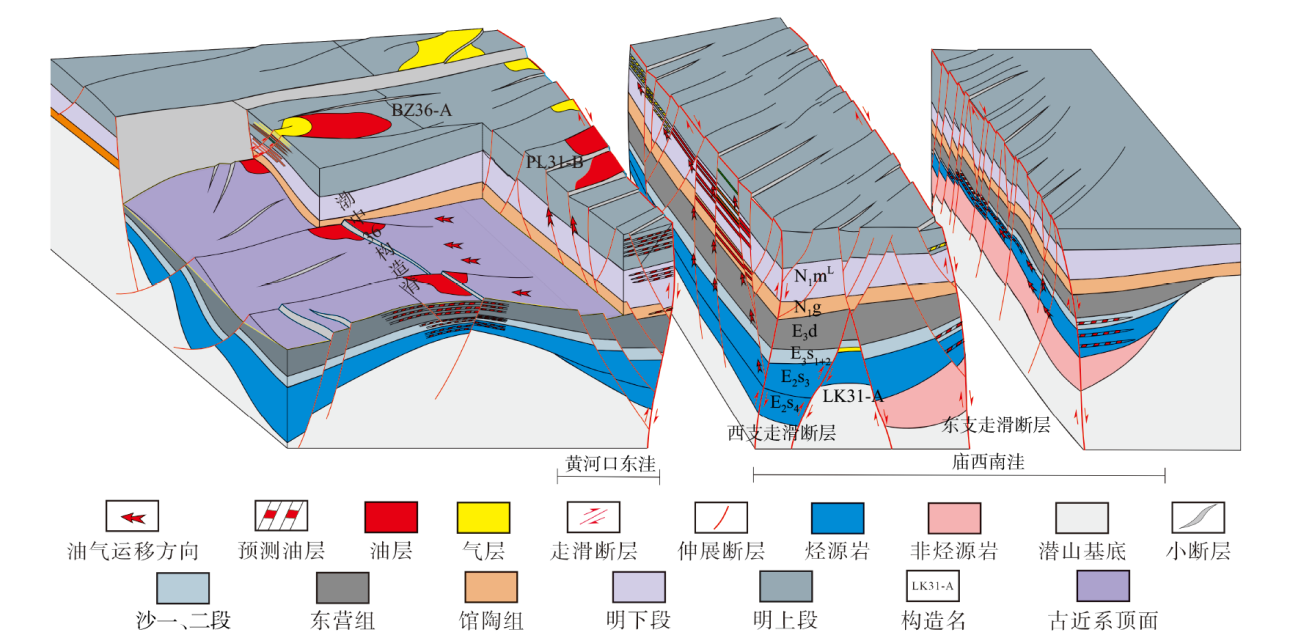

图9

渤海湾盆地庙西南地区油气成藏模式"

[1] 张树林, 费琪, 叶加仁. 断陷盆地边缘凹陷类型及其成因[J]. 石油实验地质, 2007, 29(1):47-51.
ZHANG Shulin, FEI Qi, YE Jiaren. Types and structural characte-ristics of brink sags in faulted basin[J]. Petroleum Geology & Experiment, 2007, 29(1):47-51.
[2] 薛永安. 渤海海域油气运移“汇聚脊”模式及其对新近系油气成藏的控制[J]. 石油学报, 2018, 39(9):963-970.
doi: 10.7623/syxb201809001
XUE Yong’an. The “catchment ridge”model of hydrocarbon migration in Bohai Sea and its control on Neogene hydrocarbon accumulation[J]. Acta Petrolei Sinica, 2018, 39(9):963-970.
[3] 杨海风, 吕丁友, 孙永河, 等. 渤海湾盆地黄河口凹陷东洼断裂体系发育特征及其变形过程的构造物理模拟[J]. 地球科学, 2021, 46(7):2391-2402.
YANG Haifeng, LYU Dingyou, SUN Yonghe, et al. The fault system and its tectonophysics simulation in the eastern Huanghekou sag in Bohai Bay Basin[J]. Earth Science, 2021, 46(7):2391-2402.
[4] 杨海风, 王德英, 高雁飞, 等. 渤海湾盆地盆缘洼陷新近系天然气成因与油气差异富集机理:以黄河口凹陷东洼为例[J]. 石油学报, 2019, 40(5):509-518.
doi: 10.7623/syxb201905001
YANG Haifeng, WANG Deying, GAO Yanfei, et al. Neogene natural gas genesis and hydrocarbon differential enrichment mechanism in the basin marginal sag of Bohai Bay Basin:A case study of the eastern subsag of Huanghekou sag[J]. Acta Petrolei Sinica, 2019, 40(5):509-518.
doi: 10.7623/syxb201905001
[5] 陈延芳, 杜晓峰, 王清斌, 等. 渤海黄河口东洼古地貌对沉积相的控制作用[J]. 石油地质与工程, 2020, 34(3):20-23.
CHEN Yanfang, DU Xiaofeng, WANG Qingbin, et al. Control of paleo topography on sedimentary facies in Dongwa of Huanghekou,Bohai[J]. Petroleum Geology and Engineering, 2020, 34(3):20-23.
[6] 许婷, 侯读杰, 赵子斌, 等. 渤海湾盆地黄河口东洼优质烃源岩发育控制因素[J]. 东北石油大学学报, 2017, 41(1):11-20.
XU Ting, HOU Dujie, ZHAO Zibin, et al. Controlling factors for development of high-quality source rocks in Yellow River mouth east sag of Bohai bay basin[J]. Journal of Northeast Petroleum University, 2017, 41(1):11-20.
[7] 王航, 杨海风, 黄振, 等. 走滑强控型盆缘洼陷控洼机制及主烃灶预测:以渤海盆地庙西南洼为例[J]. 成都理工大学学报(自然科学版), 2021, 48(1):53-62.
WANG Hang, YANG Haifeng, HUANG Zhen, et al. The depression-controlled mechanism and prediction of hydrocarbon kitchen in the strike slip fault-controlled marginal sag:A case study of the Miaoxi sag,Bohai Basin,China[J]. Journal of Chengdu University of Technology (Science & Technology Edition), 2021, 48(1):53-62.
[8] 宗奕, 梁建设, 刘丽芳. 庙西凹陷构造特征[J]. 岩性油气藏, 2012, 24(1):36-39.
ZONG Yi, LIANG Jianshe, LIU Lifang. Structural characteristics of Miaoxi Sag[J]. Lithologic Reservoirs, 2012, 24(1):36-39.
doi: 10.3969/j.issn.1673-8926.2012.01.007
[9] 万天丰, 朱鸿, 赵磊, 等. 郯庐断裂带的形成与演化:综述[J]. 现代地质, 1996, 10(2):159-168.
WAN Tianfeng, ZHU Hong, ZHAO Lei, et al. Formation and evolution of Tancheng-Lujiang fault zone:A review[J]. Geosciences, 1996, 10(2):159-168.
doi: 10.3390/geosciences10050159
[10] 陈怀毅, 李龙, 白冰, 等. 渤海湾盆地莱州湾凹陷古近系沙四段走滑盐拱带特征及控藏作用[J]. 岩性油气藏, 2025, 37(3):120-128.
doi: 10.12108/yxyqc.20250311
CHEN Huaiyi, LI Long, BAI Bing, et al. Characteristics and reservoir control of the strike-slip salt arch belt of Shahejie fourth Member Formation of Paleogene system in Laizhou Bay Depression,Bohai Bay Basin[J]. Lithologic Reservoirs, 2025, 37(3):120-128.
doi: 10.12108/yxyqc.20250311
[11] 孙和风, 周心怀, 彭文绪, 等. 莱州湾凹陷垦利11区盐构造特征及成藏分析[J]. 海洋石油, 2007, 27(3):46-50.
SUN Hefeng, ZHOU Xinhuai, PENG Wenxu, et al. An analysis of salt structure and accumulation in Kenli 11 district of Laizhou Bay Sag[J]. Offshore Oil, 2007, 27(3):46-50.
[12] 孙和风, 周心怀, 彭文绪, 等. 莱州湾凹陷东部走滑带盐相关构造特征[J]. 地球科学与环境学报, 2008, 30(4):380-384.
SUN Hefeng, ZHOU Xinhuai, PENG Wenxu, et al. Characteristics of salt-related structures in the eastern strike-slip zone of Laizhou Bay Sag[J]. Journal of Earth Sciences and Environment, 2008, 30(4):380-384.
[13] 韩立国. 济阳坳陷构造体制转换与郯庐断裂带的关系探讨[J]. 岩性油气藏, 2009, 21(1):72-74.
HAN Liguo. Relationship between structural regime transition of Jiyang Depression and Tan-Lu fault zone[J]. Lithologic Re-servoirs, 2009, 21(1):72-74.
[14] 任建业. 济阳坳陷新生代褶皱—冲断构造的厘定及其动力学背景分析[J]. 地质科技情报, 2004, 23(3):1-5.
REN Jianye. Identification of Cenozoic fold-thrust structure and its dynamic setting in Jiyang sag[J]. Geological Science and Technology Information, 2004, 23(3):1-5.
[15] 黄雷, 周心怀, 刘池洋, 等. 渤海海域新生代盆地演化的重要转折期:证据及区域动力学分析[J]. 中国科学:地球科学, 2012, 42(6):893-904.
HUANG Lei, ZHOU Xinhuai, LIU Chiyang, et al. The important turning points during evolution of Cenozoic basin offshore the Bohai Sea:Evidence and regional dynamics analysis[J]. Scientia Sinica(Terrae), 2012, 42(6):893-904.
[16] 薛永安, 杨海风, 徐长贵. 渤海海域黄河口凹陷斜坡带差异控藏作用及油气富集规律[J]. 中国石油勘探, 2016, 21(4):65-74.
XUE Yong’an, YANG Haifeng, XU Changgui. Differential reservoir-controlling effect and hydrocarbon enrichment of slope zone in Huanghekou sag,Bohai Bay Basin[J]. China Petroleum Exploration, 2016, 21(4):65-74.
[17] 赵野, 杨海风, 黄振, 等. 渤海海域庙西南洼陷走滑构造特征及其对油气成藏的控制作用[J]. 油气地质与采收率, 2020, 27(4):35-44.
ZHAO Ye, YANG Haifeng, HUANG Zhen, et al. Strike-slip structural characteristics and its controlling effect on hydrocarbon accumulation in Miaoxinan sag,Bohai Sea[J]. Petroleum Geology and Recovery Efficiency, 2020, 27(4):35-44.
[18] 陈锋, 朱筱敏, 葛家旺, 等. 珠江口盆地陆丰南地区文昌组层序地层及沉积体系研究[J]. 岩性油气藏, 2016, 28(4):67-77.
CHEN Feng, ZHU Xiaomin, GE Jiawang, et al. Sequence stratigraphy and depositional systems of Wenchang Formation in the southern Lufeng area,Pearl River Mouth Basin[J]. Lithologic Reservoirs, 2016, 28(4):67-77.
[19] 邓美玲, 王宁, 李新琦, 等. 渤海莱州湾凹陷中部古近系沙三段烃源岩地球化学特征及沉积环境[J]. 岩性油气藏, 2023, 35(1):49-62.
doi: 10.12108/yxyqc.20230105
DENG Meiling, WANG Ning, LI Xinqi, et al. Geochemical characteristics and sedimentary environment of source rocks of the third member of Paleogene Shahejie Formation in central Laizhouwan Sag,Bohai Sea[J]. Lithologic Reservoirs, 2023, 35(1):49-62.
doi: 10.12108/yxyqc.20230105
[20] 周心怀. 西湖凹陷地质认识创新与油气勘探领域突破[J]. 中国海上油气, 2020, 32(1):1-12.
ZHOU Xinhuai. Geological understanding and innovation in Xihu sag and breakthroughs in oil and gas exploration[J]. China Offshore Oil and Gas, 2020, 32(1):1-12.
[21] 高阳东, 林鹤鸣, 汪旭东, 等. 幕式裂陷控洼背景下的烃源岩分布及岩浆改造:以珠一坳陷番禺4洼为例[J]. 海洋地质与第四纪地质, 2021, 41(3):151-160.
GAO Yangdong, LIN Heming, WANG Xudong, et al. Source rock distribution pattern in an episodic rifting sag and later stage magmatic reformation:A case from Panyu 4 sag,Zhu Ⅰ Depression[J]. Marine Geology & Quaternary Geology, 2021, 41(3):151-160.
[22] 张向涛, 朱俊章, 熊万林, 等. 番禺4洼文昌组烃源岩生物标志化合物特征与油源判识[J]. 中国海上油气, 2020, 32(4):12-23.
ZHANG Xiangtao, ZHU Junzhang, XIONG Wanlin, et al. Biomarker characteristics and oil-source discrimination of source rocks in Wenchang Formation of Panyu 4 sag[J]. China Offshore Oil and Gas, 2020, 32(4):12-23.
[23] 龚丽, 朱红涛, 舒誉, 等. 珠江口盆地恩平凹陷文昌组层序格架中中—深湖相烃源岩空间展布规律及发育模式[J]. 地球科学(中国地质大学学报), 2014, 39(5):546-556.
GONG Li, ZHU Hongtao, SHU Yu, et al. Distribution of middle-deep lacustrine source rocks within sequence stratigraphic framework of Wenchang Formation in Enping Depression,the Pearl River Mouth Basin[J]. Earth Science-Journal of China University of Geosciences, 2014, 39(5):546-556.
[24] 汤国民, 王飞龙, 万琳, 等. 渤海海域莱州湾凹陷油源特征及原油成因类型[J]. 西安石油大学学报(自然科学版), 2021, 36(1):28-36.
TANG Guomin, WANG Feilong, WAN Lin, et al. Characteristics of oil source and genetic types of crude oil in Laizhouwan Depression,Bohai Sea[J]. Journal of Xi’an Shiyou University(Natural Science Edition), 2021, 36(1):28-36.
[25] 尹嘉, 邹才能, 吴松涛, 等. 咸化湖盆优质烃源岩发育机制与页岩油富集过程:以柴达木盆地下干柴沟组上段为例[J]. 地球科学, 2025, 50(7):2875-2898.
YIN Jia, ZOU Caineng, WU Songtao, et al. Development mechanism of high-quality source rock and enrichment processes of shale oil in saline lacustrine basin:A case study of upper member of lower Ganchaigou Formation,Qaidam Basin[J]. Earth Science, 2025, 50(7):2875-2898.
[26] 王航, 李振鹏, 黄振, 等. 基于地质模式约束的中深层储层微相精细刻画:以渤海海域黄河口东洼渤中36构造区为例[J]. 东北石油大学学报, 2019, 43(3):90-100.
WANG Hang, LI Zhenpeng, HUANG Zhen, et al. Medium-deep reservoir microfacies characterization based on geological model constrain:Taking BZ36 structure of East Huanghekou sag in Bohai sea as an example[J]. Journal of Northeast Petroleum University, 2019, 43(3):90-100.
